- HWS不銹鋼氣液除霧器
- 提交訂單
HWS不銹鋼氣液除霧器主要用于在沿海地區及鹽霧較多區域，對進行海外工作設備的保護，也是一種保護電機或通風機等設備的過濾裝置，過濾器詳細規格技術參數見各過濾器產品說明。
常用規格 Common Specifications
|
型號 Model |

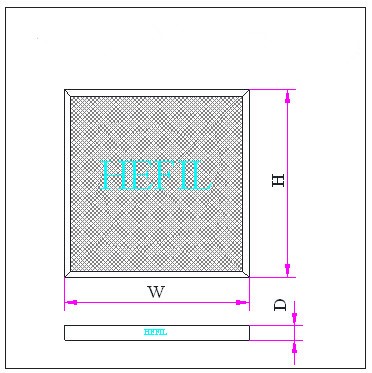

外形尺寸 Dimensions |
額定風量 Rated Air Flow(m3/h) |
額定風速 Face Velocity (m/s) |
初始?jí)航?/span> Initial Pressure Drop(Pa) |
|
W×H×D(mm) |
||||
|
HWS-12×24×1 |
290×595×25 |
1500 |
2.5 |
25 |
|
HWS-20×20×1 |
493×493×25 |
2100 |
||
|
HWS-20×24×1 |
493×595×25 |
2600 |
||
|
HWS-24×24×1 |
595×595×25 |
3100 |
||
|
HWS-12×24×2 |
290×595×46 |
1500 |
50 |
|
|
HWS-20×20×2 |
493×493×46 |
2100 |
||
|
HWS-20×24×2 |
493×595×46 |
2600 |
||
|
HWS-24×24×2 |
595×595×46 |
3100 |
注：1、若遇規格、結構變更，以本公司提供的最新數據為準；有關更新內容請關注本公司網站：lancexlab.cn.
2、本公司接受非表上規格自凈器產品的訂貨。
Note: 1. In case of specifications or structures changes, HEFIL will provide up-to-date data on website: www.hefilter.com.
Note: 2. HEFIL makes various of other models’ BAFH filter not listed in above table. Please consult with us if you need.◆能有效去除空氣中的鹽霧和油霧
◆316L不銹鋼外框結構，減少對過濾器清潔和維護的頻率
◆濾料采用316氣液網，高容塵量，使用壽命長
◆結構小巧，易于安裝
◆可以利用壓縮空氣吹洗或清潔液進行多次清洗，重復使用
◆大大降低引起火災的危險程度
◆符合GB/T14295與EN779標準
◆It can effectively remove the salt mist and oil mist in the air
◆316L stainless steel outer frame structure, reducing the frequency of filter cleaning and maintenance
◆The filter media adopts 316 gas-liquid mesh, with high dust capacity and long service life
◆Compact structure, easy to install
◆It can be cleaned several times by compressed air blowing or cleaning liquid and used repeatedly
◆Greatly reduce the risk of fire
◆Comply with GB/T14295 and EN779 standard
應用 Application
◆適用于在沿海地區或者鹽霧較多地區進行野外作業的電機，不銹鋼氣液除霧器是一種保護油田電機和通風機的高效過濾裝置。
